SEETEC WPC215 21.5 inch 1000nit High Bright Portable Carry-on Director Monitor Full HD 1920x1080







redovna cijena $1,299.99
. Zalihe u US, EU, JP, AU, CA, RU lokalnom skladištu
SAD/ CA/ RU: Dostava 3-7 dana
EU / AU: Dostava 3-10 dana
JP: Dostava 2-3 dana
. Dostava širom svijeta s više od 200 država
Dostava 7-10 dana.
. garancija: Jedna godina garancije i 14 dana povrata i povrata novca za SAD, EU, JP, AU, RU.
. PDV za kupce iz EU: PDV traži vlada EU, a naplatit će se kada naručite čak i ako kupujete naše proizvode na našoj Amazon Store. Nema razlike gdje god da ga kupite, a PDV je uključen u cijenu na tim tablicama za online kupovinu.
Više detalja: Politika isporuke | Garancijska politika

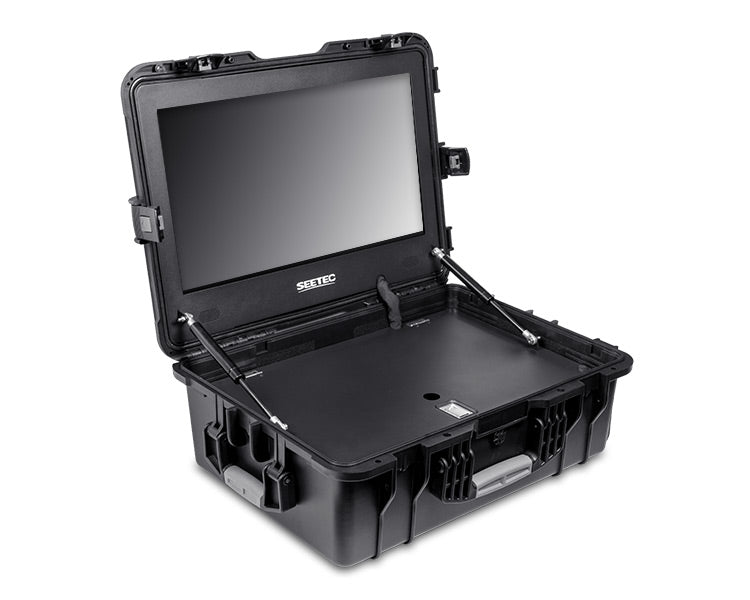

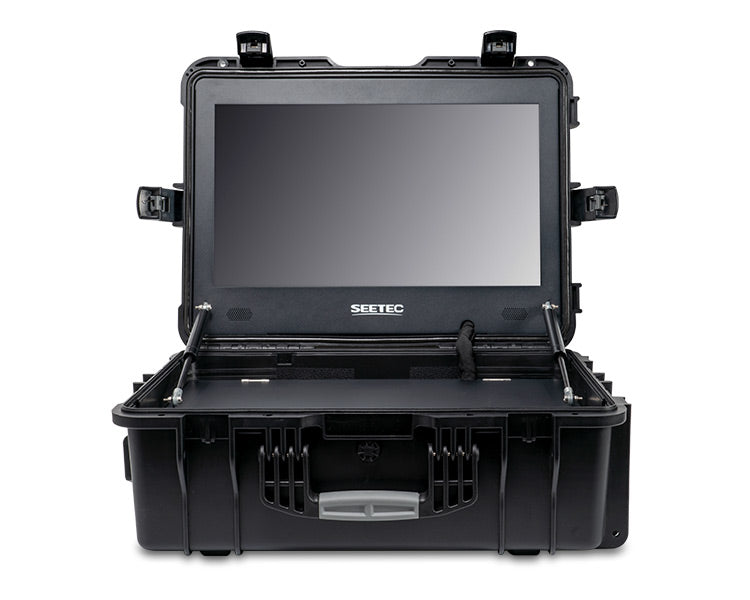

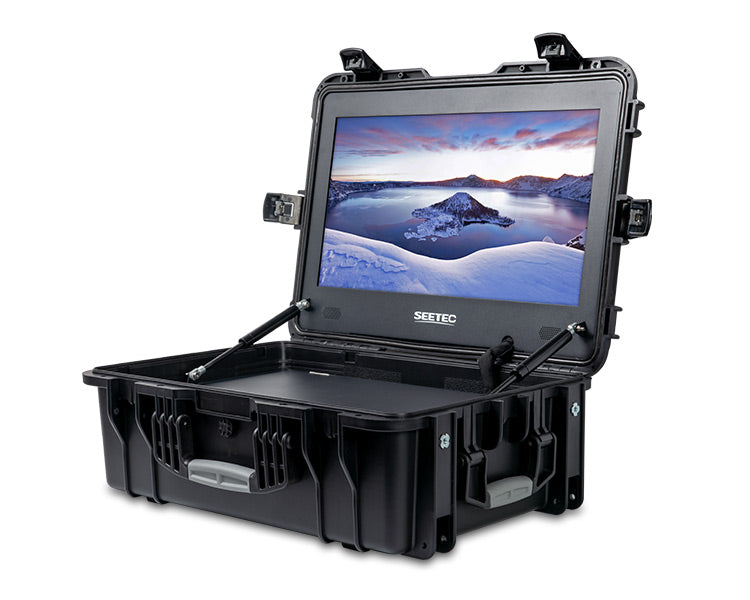

21.5-inch High Bright Portable Director Monitor
Monitor is an indispensable equipment for locating filming. The environment is harsh of outdoor, and the equipment moves frequently. If there is a monitor with portable, waterproof, dust-proof and high temperature resistance, it will be perfect. FEELWORLD WPC215 can be done! The important is that the panel integrated with the PP alloy protective case. For various harsh filming environments, WPC215 can easily handle it.
Full HD IPS panel
Pregledajte jasno i s povjerenjem uhvatite svaki detalj
Sa IPS panelom izuzetno visoke rezolucije, pruža odlične detalje;pokriva 72% NTSC prostora boja, precizno odražava originalne boje.
Professional Calman Software Calibration, True Color Presentation
Each monitor is calibrated by Calman software at the factory to ensure color accuracy and good reproduction.
1000 nita, vidljivo po dnevnom svjetlu
Backed by 1000nits of brightness, WPC215 isn't afraid to get a little sun. Easily adjust the monitor brightness to fit your filming environment,especially suitable for outdoor filming in crew.
New UI Menu Interface
New UI menu, take the software functions are iconized, and the values at a glance. It is more convenient and quickly to operate the function.
Učitajte prilagođene 3D LUT-ove,Pregled snimanja Gledajte u polju snimanja
Podržava upload 32 prilagođenih LUT-ova
3D-LUT je tabela za brzo traženje i izlaz specifičnih podataka o boji. Učitavanjem različitih 3D-LUT tabela, može brzo rekombinovati ton boje da bi formirao različite stilove boja. Ugrađeni 4 DE-log LUT, takođe možete učitati prilagođenu .cube datoteku putem USB flash drajvera (do 32).
Precizno praćenje talasnog oblika
Uštedite svoj budžet
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode . WPC215 becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
Fleksibilno i intuitivno upravljanje dugmadima
When you are busy at the shooting scene, you need to be able to easily control the equipment.WPC215 is equipped with multi operation buttons,can switch between one-button sources, custom shortcuts, and quickly adjust brightness,contrast,volume ,etc.to make shooting easier.

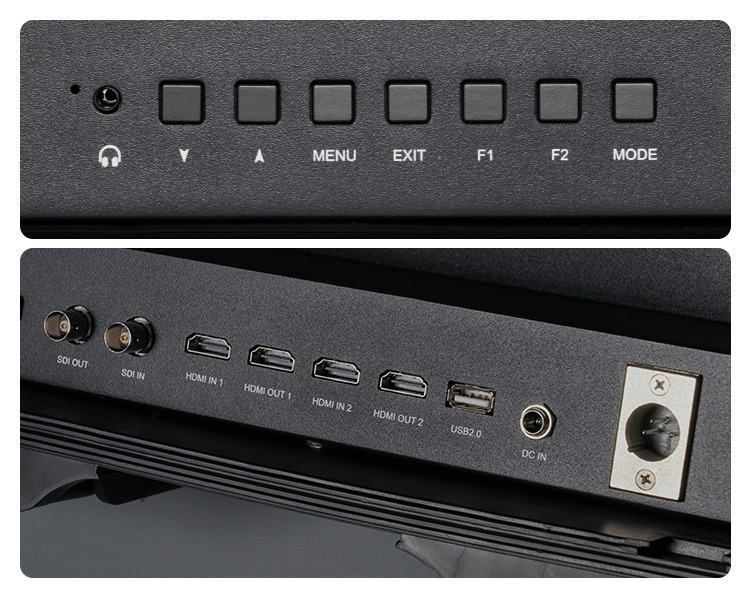

Dual HDMI + SDI Input and Output, Meet More Selection
The monitor equipped with SDI and 4K HDMI input and output, compatible with film camera, DSLR camera, mirrorless camera.And loop-out to other device via output port,realize multi person simultaneous monitoring.For audio, WPC215 provides two speakers and one 3.5mm earphone jack.

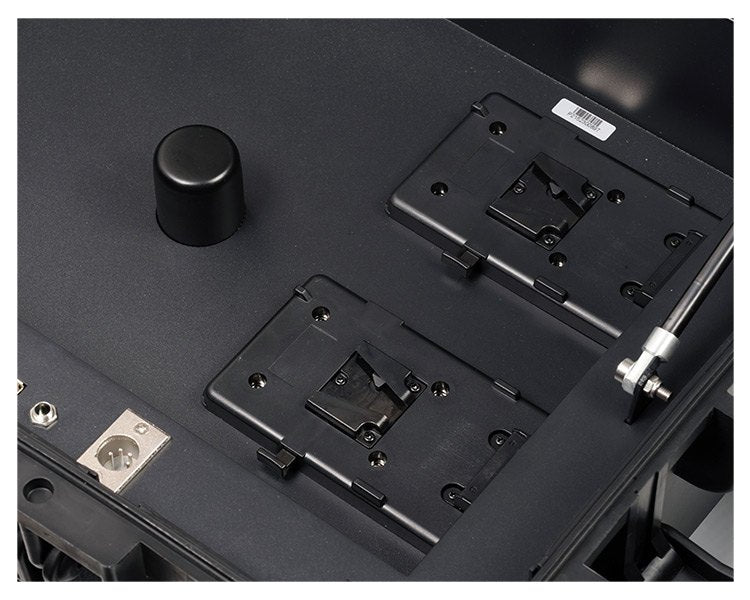

Višestruko napajanje, dugotrajno napajanje
The monitor offers 12V DC power interface, XLR connector (can be use 4A power adapter) and 2 V-mount battery plates for options. Provide strong power for outdoor filming.
Note: the battery not including
Reserved Storage Space
There is a portion of space on the left side of suitcase inside, can put the accessories or other equipment. And with a metal cover for protection.
Podrška za više jezika ,Zadovoljiti različite potrebe
WPC215 built-in up to 11 languages, meet the different needed.

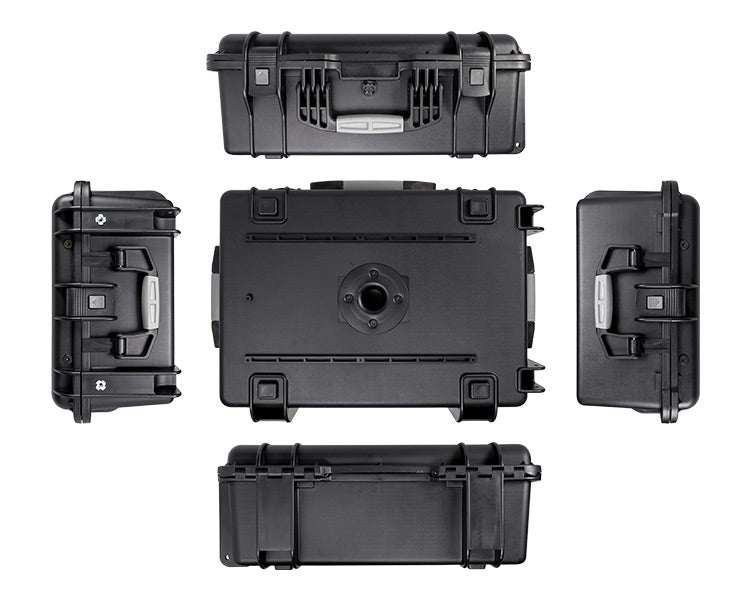

Multiple Mounting Points,Make Filming More Possibilities
There are two 1/4 threads both on the right side and top of suitcase, which can be installed with wireless video transmission or other equipment. In addition, the bottom of case built-in metal bracket, you can easy install the monitor on the tripod or light stand.
Ključne značajke:
* 21.5-inčni 1920x1080 full HD veliki ekran

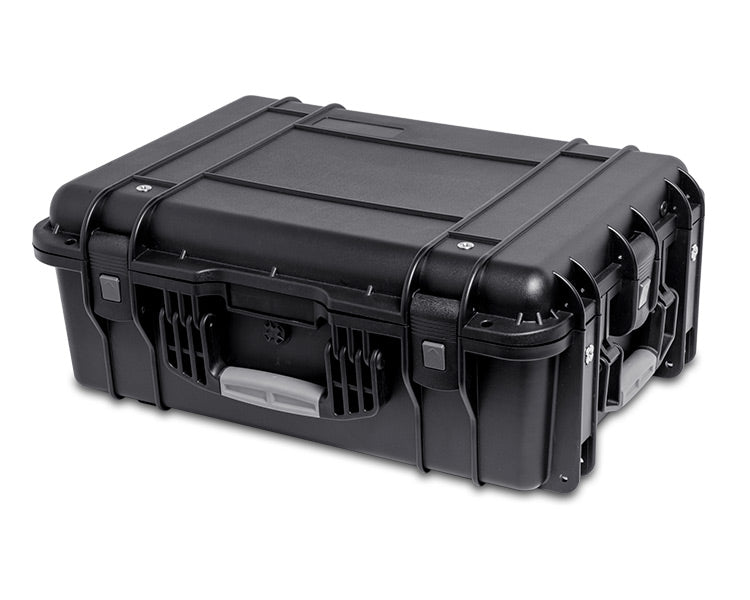

* Portable waterproof case, easily cope with various harsh shooting environments
* 1000nits high brightness, ideal choice outdoor shooting
* Flexible and intuitive button operation, easy to use
* Custom 3D-LUT, preview film look
* Sa funkcijama Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome itd., mogu vam pomoći da precizno izložite i fokusirate svaki snimak.
* 3G-SDI,HDMI support up to 4K@30Hz
* With multiple 1/4 screw thread, can be mount wireless transmission and other device.
* The bottom of case built-in metal bracket, can mount the monitor on the tripod.
* Stereo izlaz za slušalice
* All waves (waveform, vector, histogram and embedded audio)
* Waveform (RGB、YUV、Y)
* Vektor
* Histogram(RGB1、RGB2、Y)
*Focus Assist ( Red, Green, Blue three colors optional highlight over parts of the image in focus)
*Embedded Audio
*Over Exposure (10~100)
* Provjereno polje (crveno, zeleno, plavo, sivo)
*False Color
* Nine Grid
*Safety Marker ( 80%, 85%, 90%, 93%, 96%, 2.35:1)
* Centralni marker
*Ratio Marker(4:3、13:9、14:9、15:9、16:9、1.85:1、2.35:1)
*Način skeniranja (ispod skeniranja, preko skeniranja)
*Aspect Ratio (Auto, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1, Full Screen)
*Anamorphic (1.33X, 1.6X, 2.0X, 2.0X MAG, User)
*Image Flip (H Flip, V Flip, H_V Flip)
*Zoom Mode(2X、4X、9X、16X、User)
*Smrzni se
* Pixel na Pixel
*3D-LUT
*Colortemp (5600K, 6500K, 9300K, User)
Model | WPC215 |
Veličina ekrana | 21.5 "IPS |
Dubina boja | 16.7M |
rezolucija | 1920 × 1080 piksela |
Piksel pitch | 0.24795 (Š) x 0.24795 (V) mm |
Omjer | 16:9 |
svjetlost | 1000cd / m² |
kontrast | 1000:1 |
pozadinskog osvjetljenja | LED |
Ugao | 89 ° / 89 ° (L / R) 89 ° / 89 ° (U / D) |
1X SDI | 3G-SDI |
2 x HDMI | HDMI-A (up to 4K@30) |
1 x USB | USB (nadogradnja i LUT uvoz) |
1 X SDI | 3G-SDI |
1 x HDMI | HDMI-A (up to 4K@30) |
zvučni | Stereo slušalice, zvučnik |
720p (60/59.94/50/30/29/25/24/23.98) |
1080i (60 / 59.94 / 50) |
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF) |
480i / 576i / 480p / 576p |
720p (60/59.94/50/30/29.97/25/24/23.98) |
1080i (60 / 59.94 / 50) |
1080p (60/59.94/50/30/29.97/25/24/23.98) |
4K UHD 3840×2160p (30/29.97/25/24/23.98 Hz)| 4096×2160p (24Hz) |
ulazni napon | DC 12V |
Potrošnja energije | ≤38W |
Radna temperatura | 0 ° C ~ 50 ° C |
Temperatura skladištenja | -20 ° C ~ 60 ° C |
Veličina jedinice | 596 * 440 * 240mm |
Težina jedinice | oko 14.8 kg |
Vanjska Karton Kol | 1 |
Outer Carton Size | (Mm) |
bruto težina | kg |
* Ugrađeni Delog LUT-ovi za više kamera |
* Učitavanje korisničkih 3DLUT-ova putem USB-a (do 32) |
* All waves(RGB、YUV、Y) |
* Vektor |
* Histogram (RGB1、RGB2、Y) |
* Pomoć pri fokusiranju (crvena, zelena, plava tri boje opciono isticanje preko delova slike u fokusu) |
* Lažne boje |
* Over Exposure (10-100) |
* Pod skeniranjem, preko skeniranja |
* Anamorphic Mode (1.33X, 1.6X, 2.0X, 2.0X MAG, User) |
* Pixel to Pixel |
* Centralni marker |
* Safety Marker (80%, 85%, 90%, 93%, 96%, 2.35:1) |
* Ratio Marker ( 4:3、13:9、14:9、15:9、16:9、1.85:1、2.35:1) |
* Zamrzavanje slike |
* Unapred podešene temperature boje koje se mogu birati |
Standardna oprema:
1 × adapter za napajanje
1× SDI kabl
1 × Mini HDMI kabel
2× V-mount ploča za bateriju (podrazumevano za postavljanje na uređaj)
1× Uputstvo za upotrebu
